Aurora I
Specifications

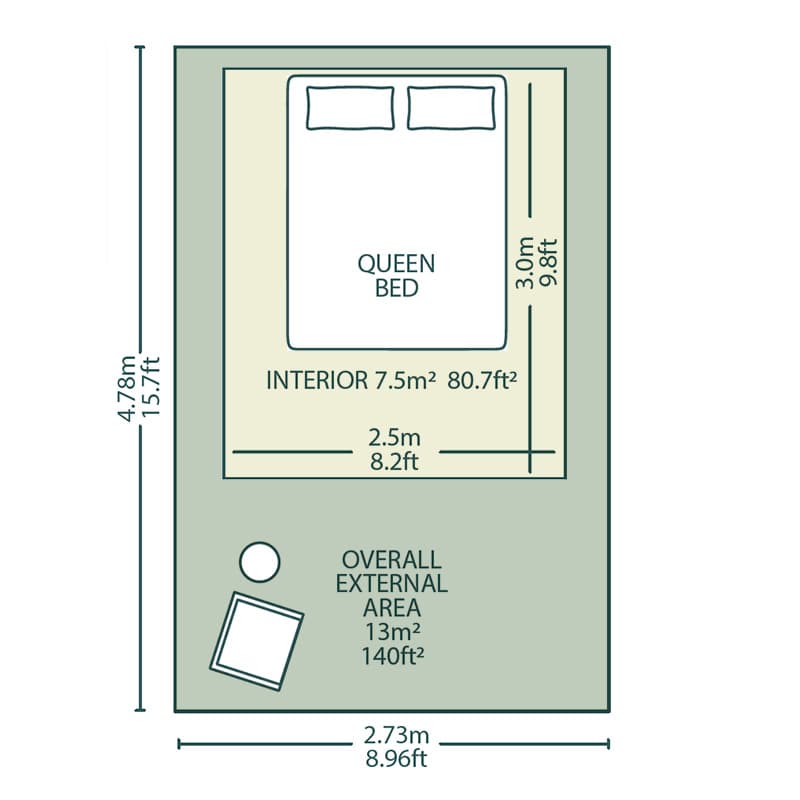

Dimensions
- Floor area
- 80.7 ft²
- Outer dimensions
- 13.1 × 15.4 × 8.5 ft
- Inner dimensions
- 8.9 × 10.2 × 7.9 ft
- Center height
- 8.5 ft
- Outer area
- 202.4 ft²
Structure
- Package weight
- 160 kg
- Frame / poles
- 6063-T6 aluminum alloy, 70mm dia, 1.5mm thickness
- Max wind load
- 130 km/h
- Max snow load
- 6.1 psf (30 kg/m²), engineer report
Materials
- Cover / roof
- 650 g/m² double-coated opaque PVC, dark green; waterproof, UV resistant, flame retardant B1
- Walls / lining
- 900D Oxford cloth sidewall, zipper door, PU 5000mm
- Insulation
- Not included - optional add-on: 1 or 2 layers (see Options LS-OP-109-110)
- Materials & other specs
- Ground lining 480 g/m² beige PVC; connectors Q235B black steel 76mm x 2mm; netting 40 gsm white; 6mm nylon ropes; 5mm steel stakes
General
- Warranty
- Cover 2 yr
Gallery
13 images01 / 13
