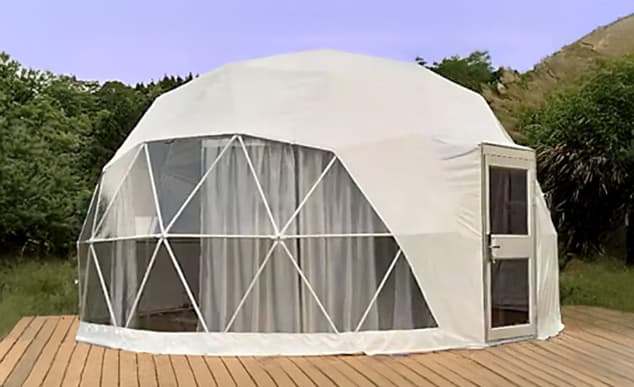

7m Preconfigured Dome

7m Preconfigured Dome

Specifications

Dimensions

Floor area
414.4 ft²
Diameter
23 ft
Center height
13.1 ft

Structure

Structure weight
550 kg
Frame / poles
Standard (32mm x 2mm)
Frame frequency
3V
Factory wind / snow by tube
3V. Tube 32×2.0: wind 140 / 200 km/h, snow 80 kg/m². Tube 45×2.5: wind 160 / 230 km/h, snow 100 kg/m².
Max wind load
161 / 201 km/h (100 / 125 mph)
Max snow load
130 / 140 / 150 psf

Openings

Door / entrance
Wooden door (WPC) - included in package

Materials

Cover / roof
850 gsm PVC (panoramic window 950 gsm, removable)
Walls / lining
N/A - single PVC cover (see Cover / roof)
Insulation
4 layers - included in package
Frame colours
Black (default), White, Galvanized
Cover colours
White (default), Sandy Beige, Military Green

General

Package includes
Standard exterior cover (3 colour options); 4-layer insulation (2 colour options); Curtains (2 colour options); WPC entry door (3 colour options); 2 round operable glass windows with screen; Solar fan; Moisture barrier; Stove jack (6" or 8")
Warranty
Cover 2 yr
