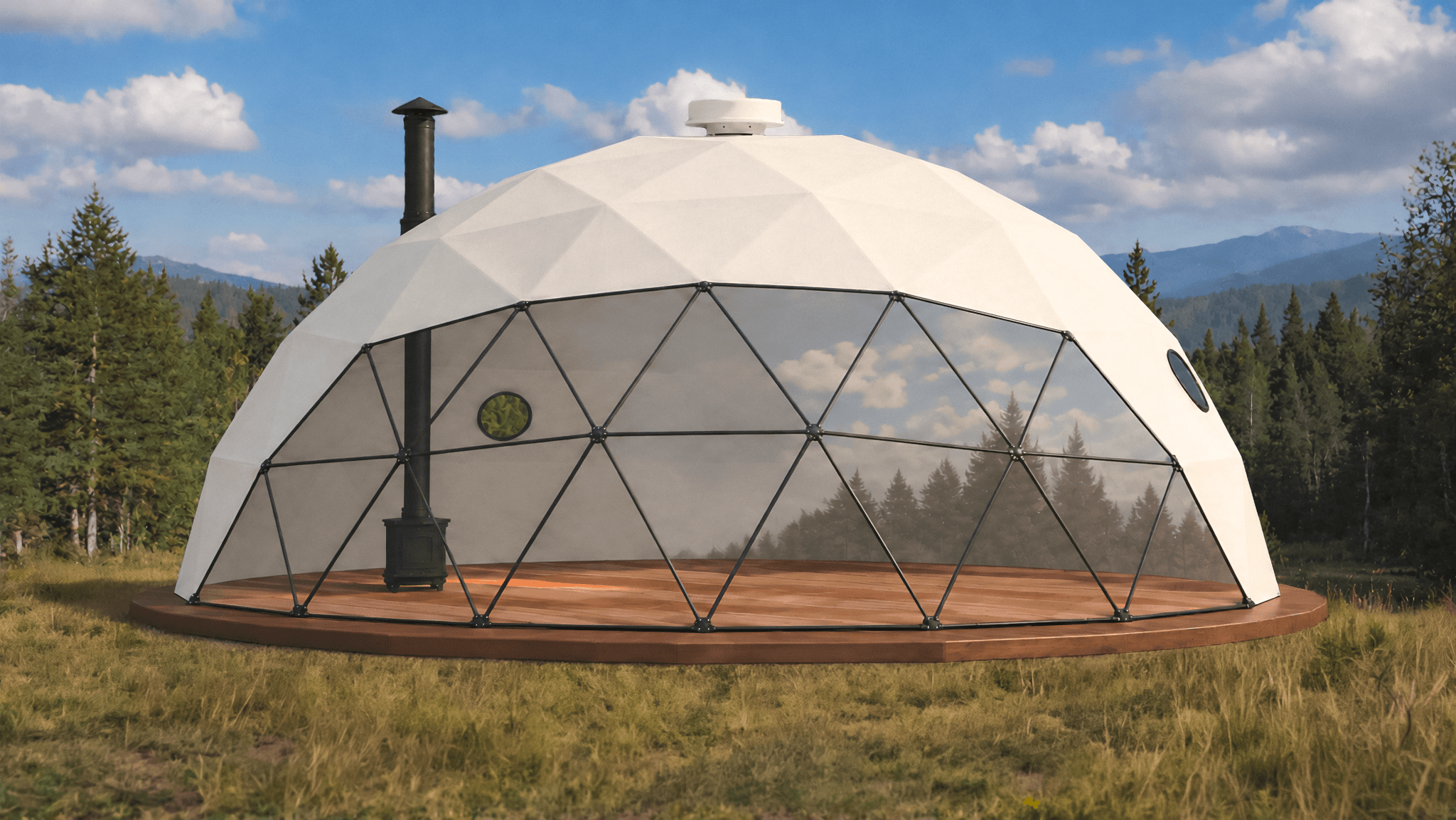

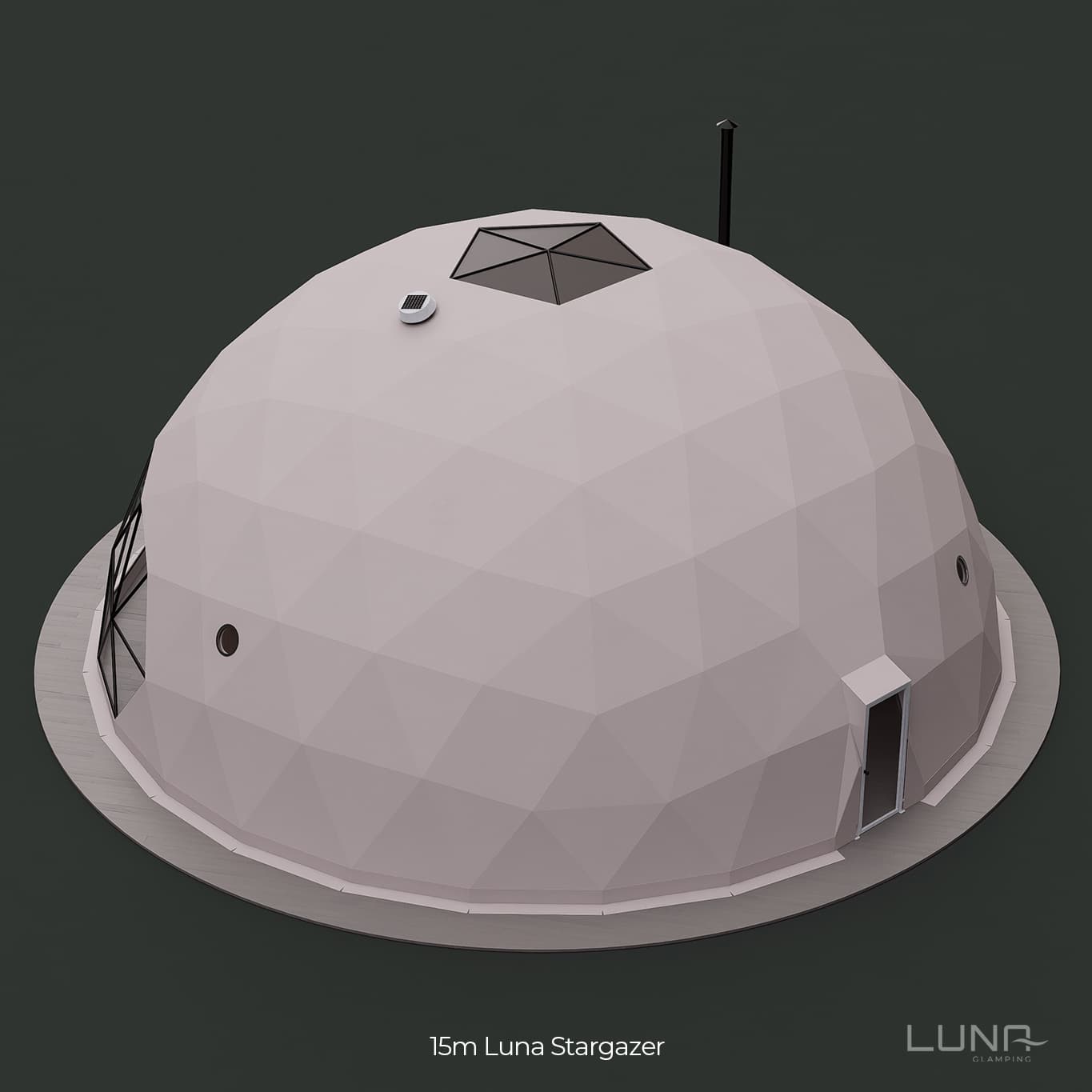

15m Stargazer Geodesic Dome
About

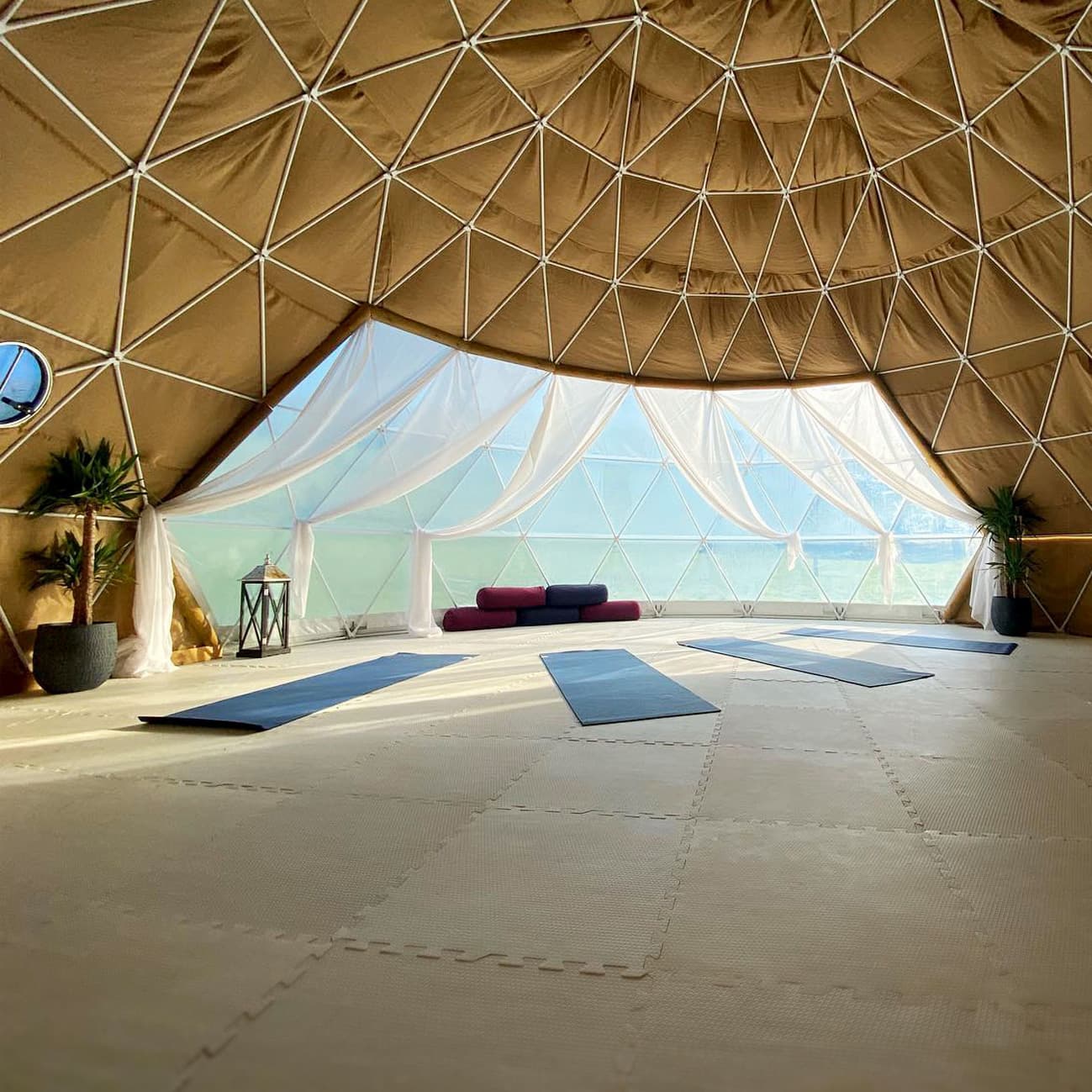

Our largest 15m Stargazer is best suited for events, resorts, collaborative work space or a yoga studio, or family glamping with 177 sq m (1,905 sq ft).
Specifications
Dimensions
- Center height
- 21' 10"
- Diameter
- 49' 3"
- Floor area
- 1,905 ft²
- Wall height
- 10' 1"
- Double door frame height (inside)
- 83"
- Double door frame width (inside)
- 5' 3"
- Single door frame height (inside)
- 83"
- Single door frame width (inside)
- 4' 11"
- Circle glass window diameter
- 18" (operable)
- Circle PVC window diameter
- 20" (inoperable, fixed)
Structure
- Wind rating
- 100mph / 125mph (1/50)
- Snow load
- 3.83kPa / 4.79kPa
- Maximum Von Mises stress
- 30.6 MPa
- Weight
- 2500 kg
- Standard framework thickness
- 42mm x 2.5mm
- Framework thickness upgrade
- 48mm x 3mm
- Structure design
- Kiewitt 6K
- Structure weight
- 2500 kg
Openings
- Triangle roll-up window
- 44"
General
- Strut size
- 42mm x 2.5mm round tube
- Maximum displacement
- 1.55mm

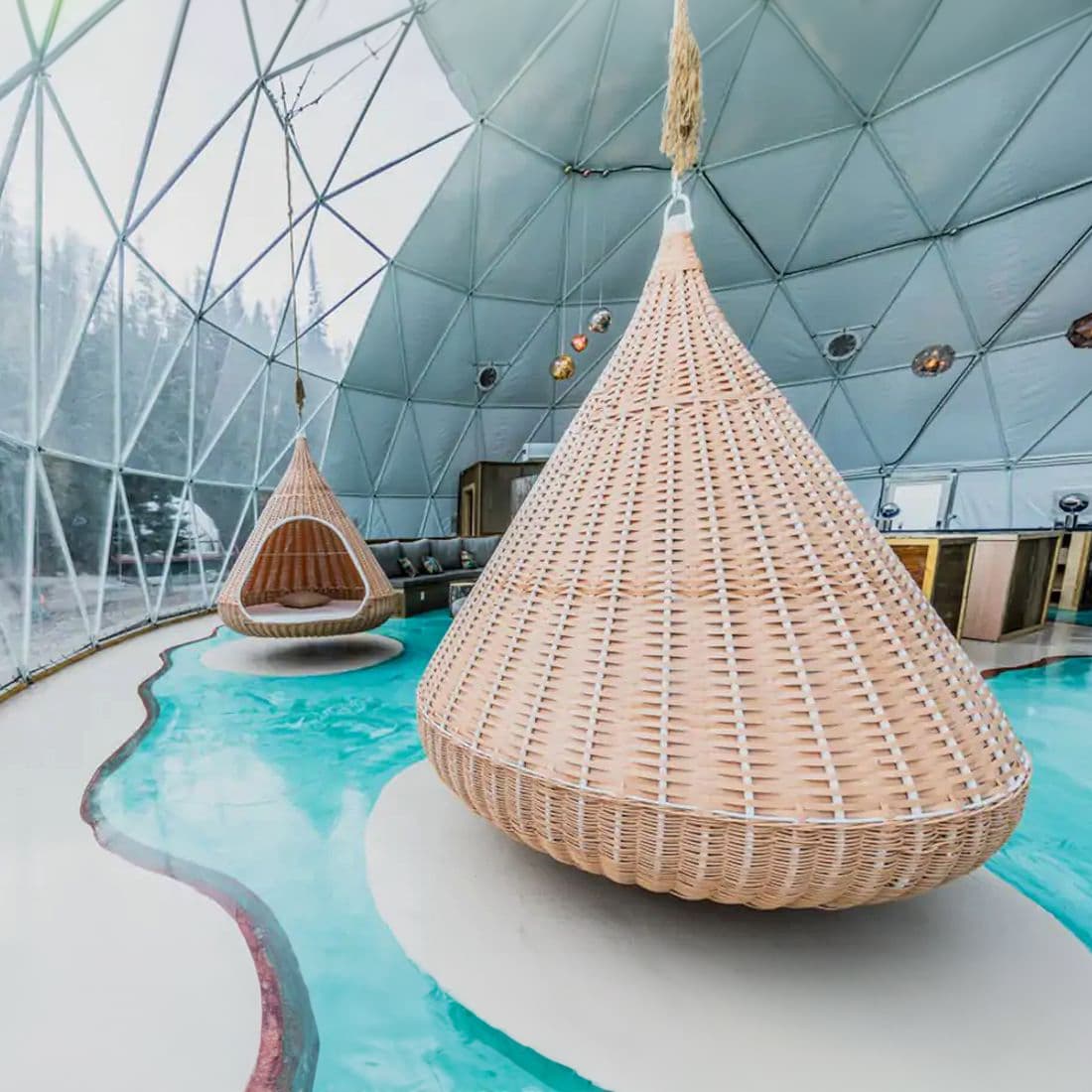

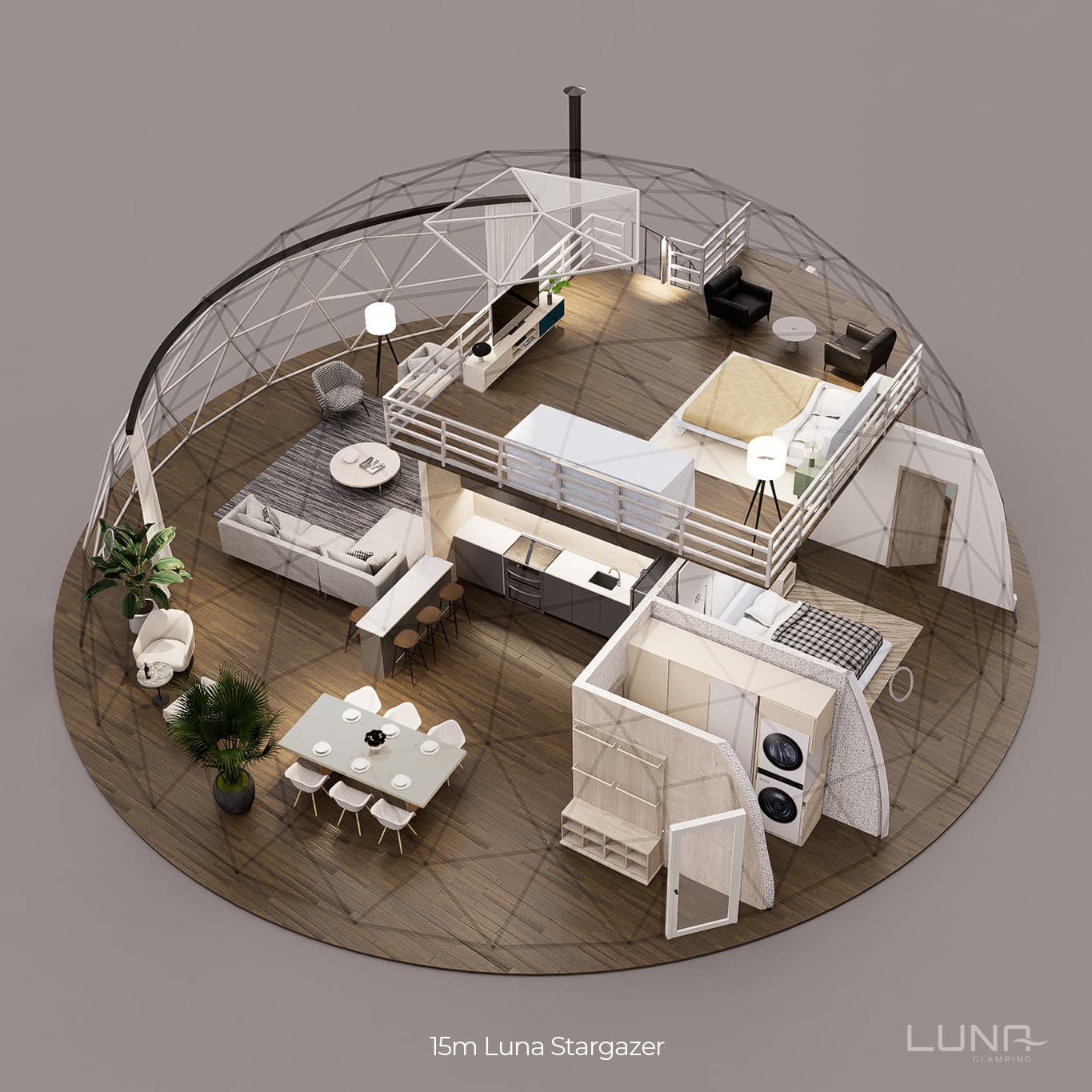

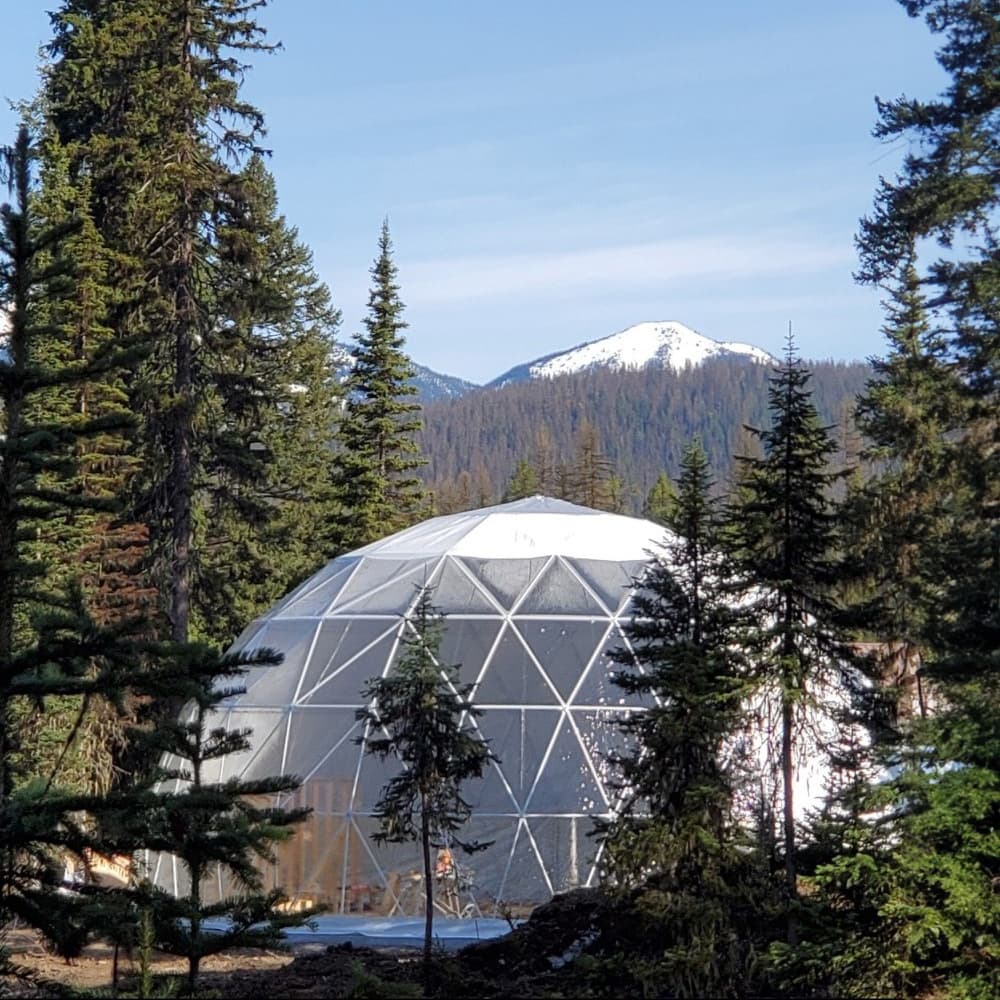

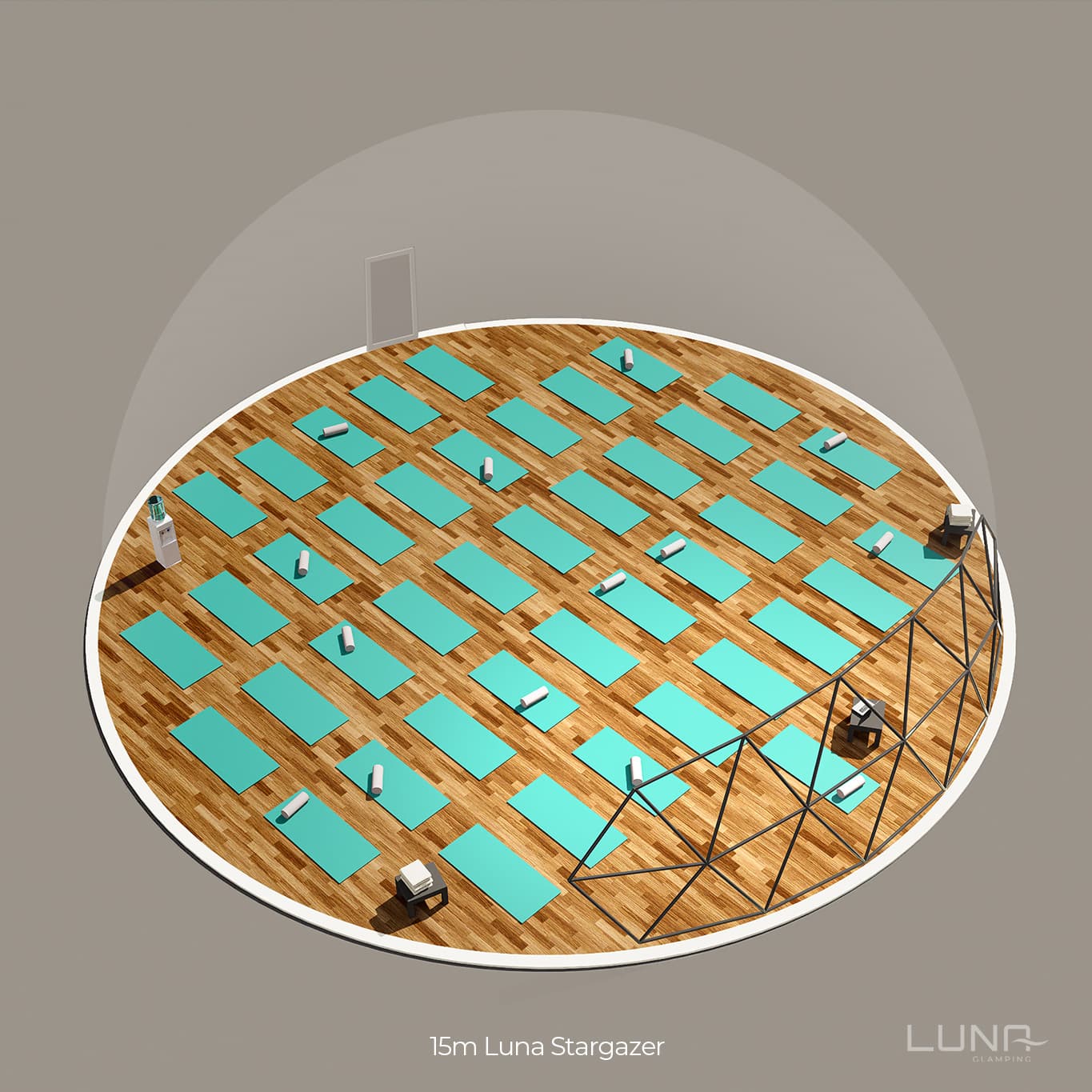

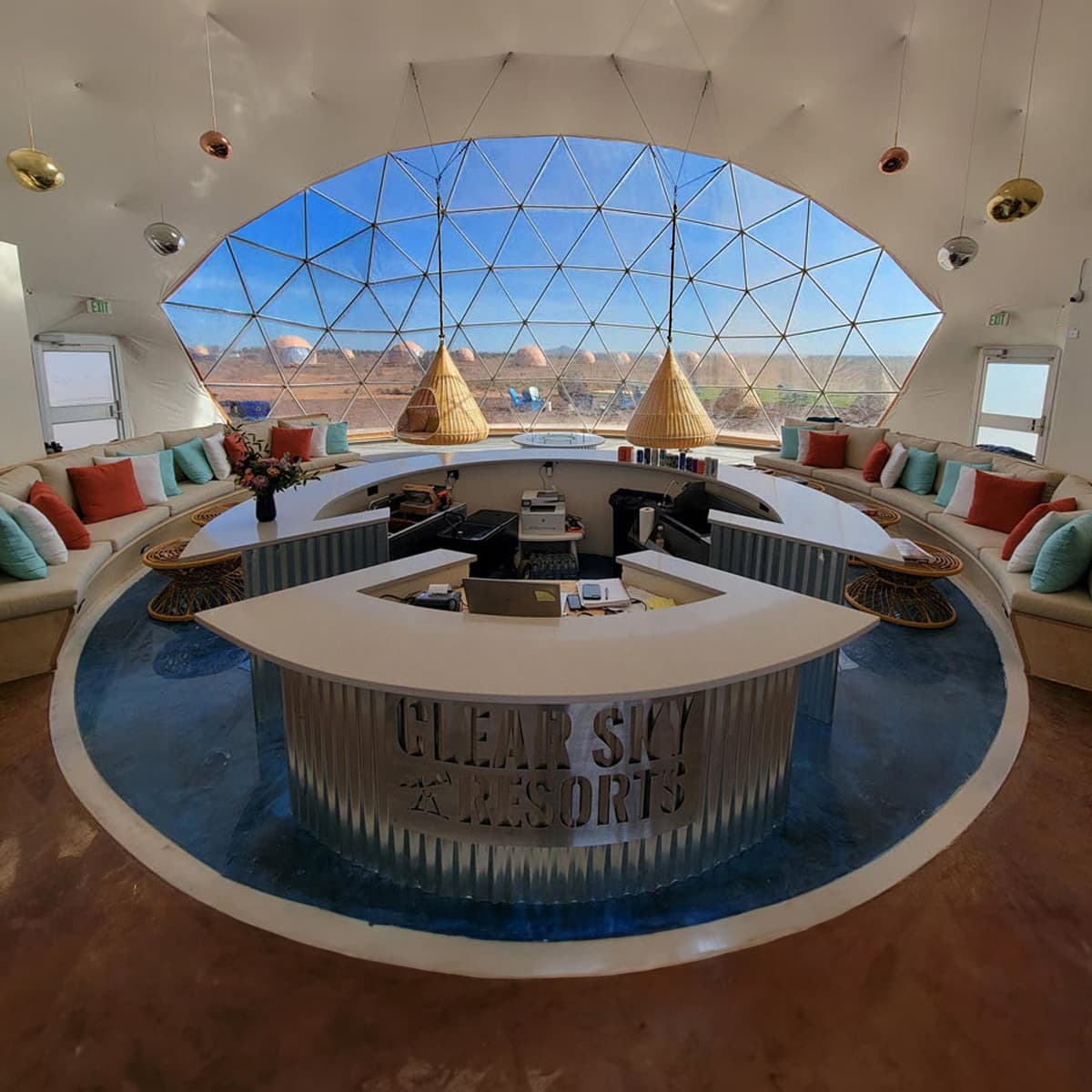

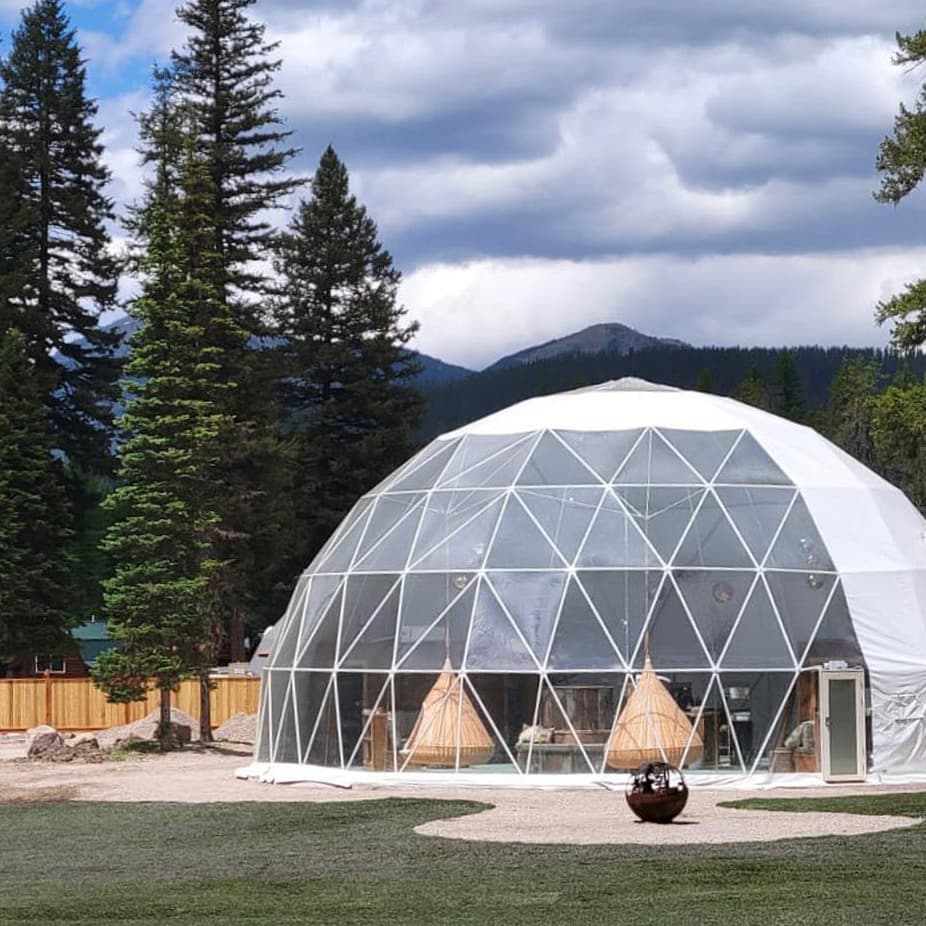

Gallery
12 images01 / 12
