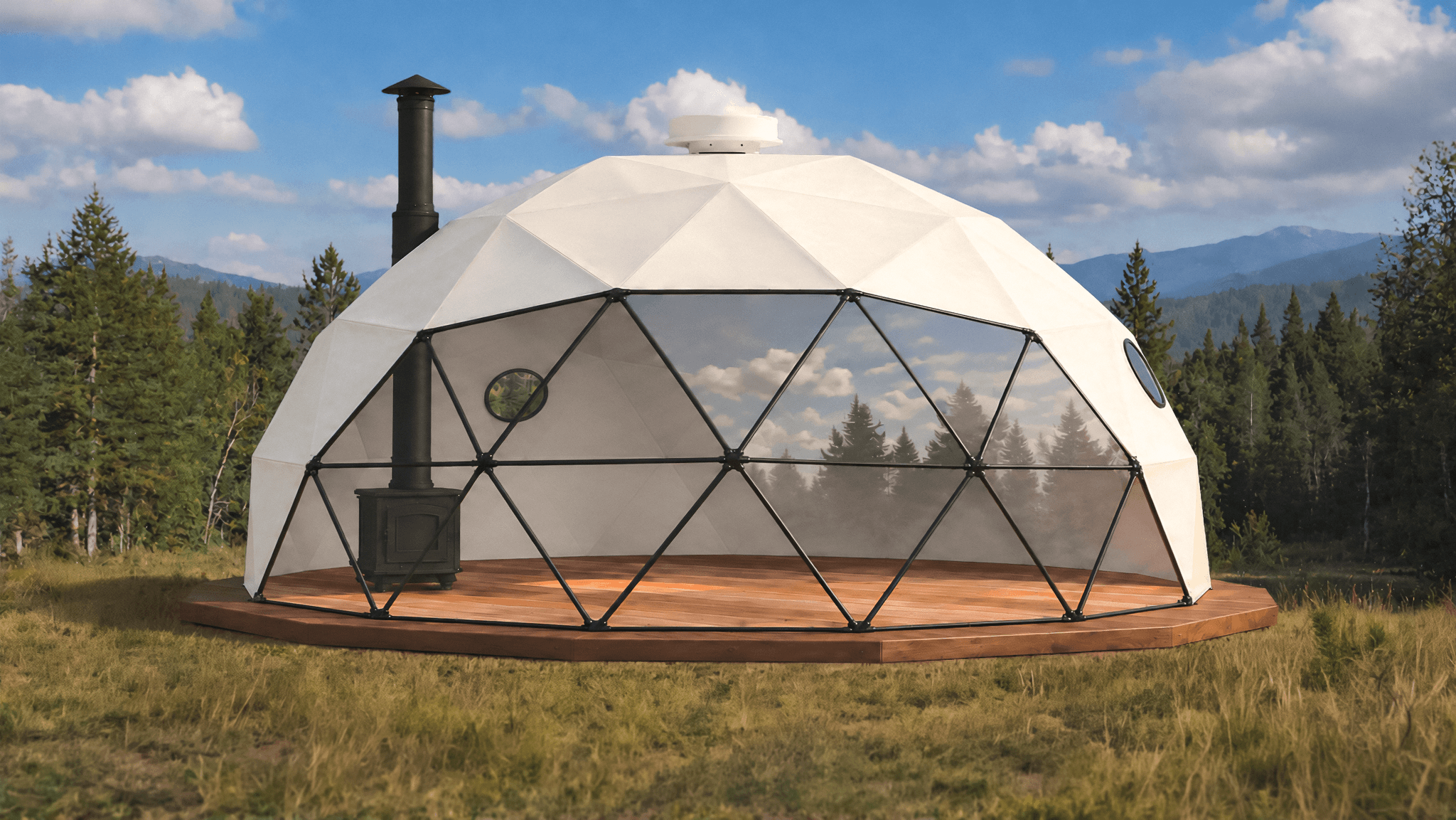

12m Stargazer Geodesic Dome
About
The 12m Stargazer is best suited for events, collaborative work space or a yoga studio, or family glamping with an approximate nominal circular footprint of 113.1 sq m (1217 sq ft). Usable interior area depends on the finished wall, insulation and layout.
Specifications
Dimensions
- Nominal floor area
- 1,217 ft²
- Platform outer dimension
- 12201.10mm
- Platform floor dimension
- 12044.39mm
- Plywood area (top)
- 1248 sqft
- Plywood area (top + bottom with wastage)
- 1498 sqft
- Wall height (base elevation)
- 5' 9"
- Double door frame inside height
- 83"
- Double door frame inside width
- 4' 7"
- Single door frame inside height
- 83"
- Single door frame inside width
- 36"
- Clear view structure window height
- 10' 4"
- Skylight diameter
- 72"
- Diameter
- 39' 5"
- Center height
- 19' 8"
- Structure bolt length (without insulation)
- M18 x 80mm
- Structure bolt length (with insulation)
- M18 x 110mm
- Circle glass window diameter
- 18" (operable)
- Circle PVC window diameter
- 20" (inoperable, fixed)
Structure
- Wind rating
- 100mph and 125mph (1/50)
- Snow load
- 3.83kPa and 4.79kPa
- Standard framework thickness
- 42mm x 2.5mm
- Framework thickness upgrade
- 48mm x 3mm
- Structure design
- Kiewitt 6K
- Structure weight
- 1800 kg
Openings
- Triangle roll-up window size
- 44"
General
- Pier blocks (foundation)
- 12" x 8" x 8"
- Wrench size required
- 27mm

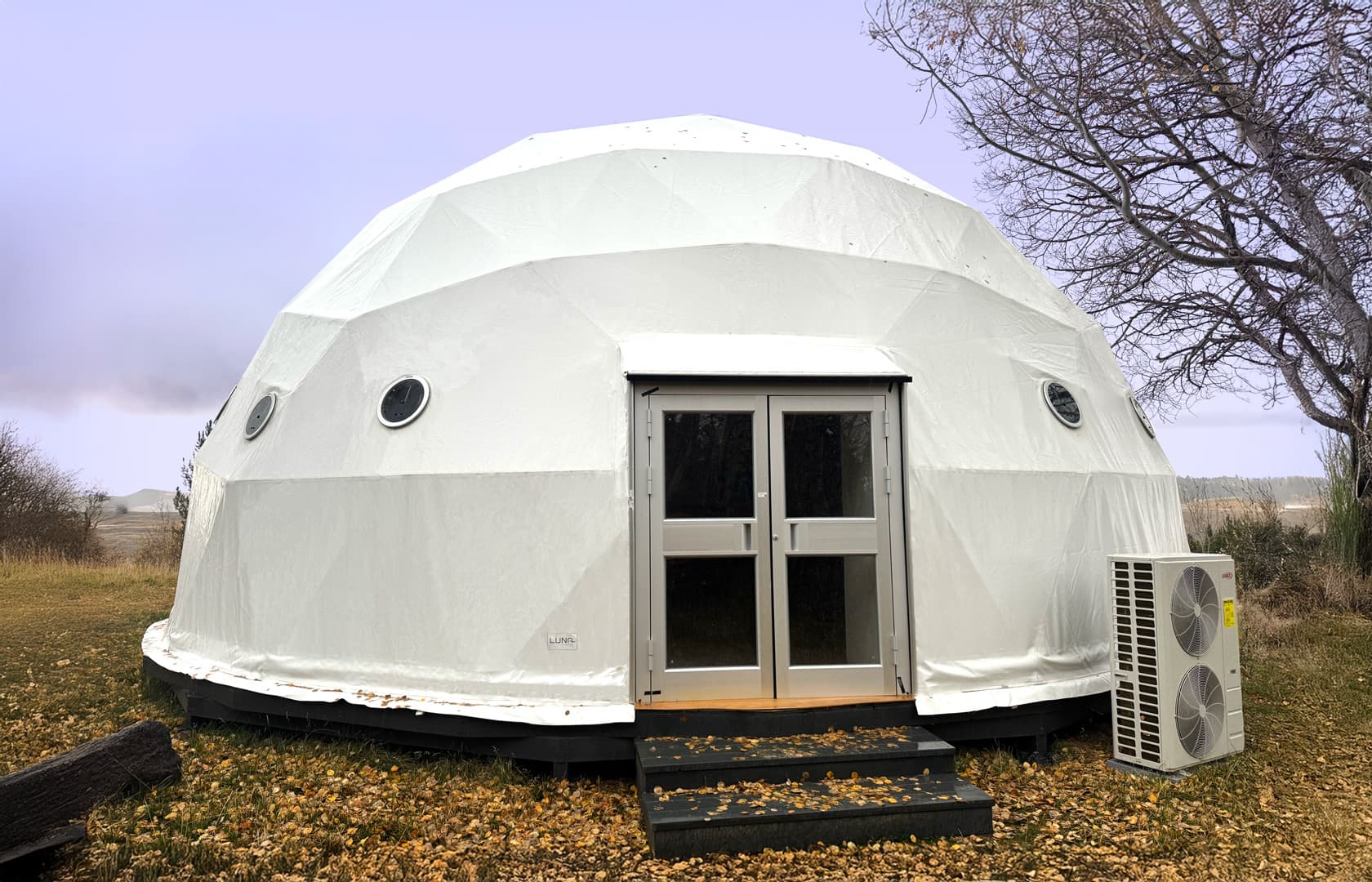

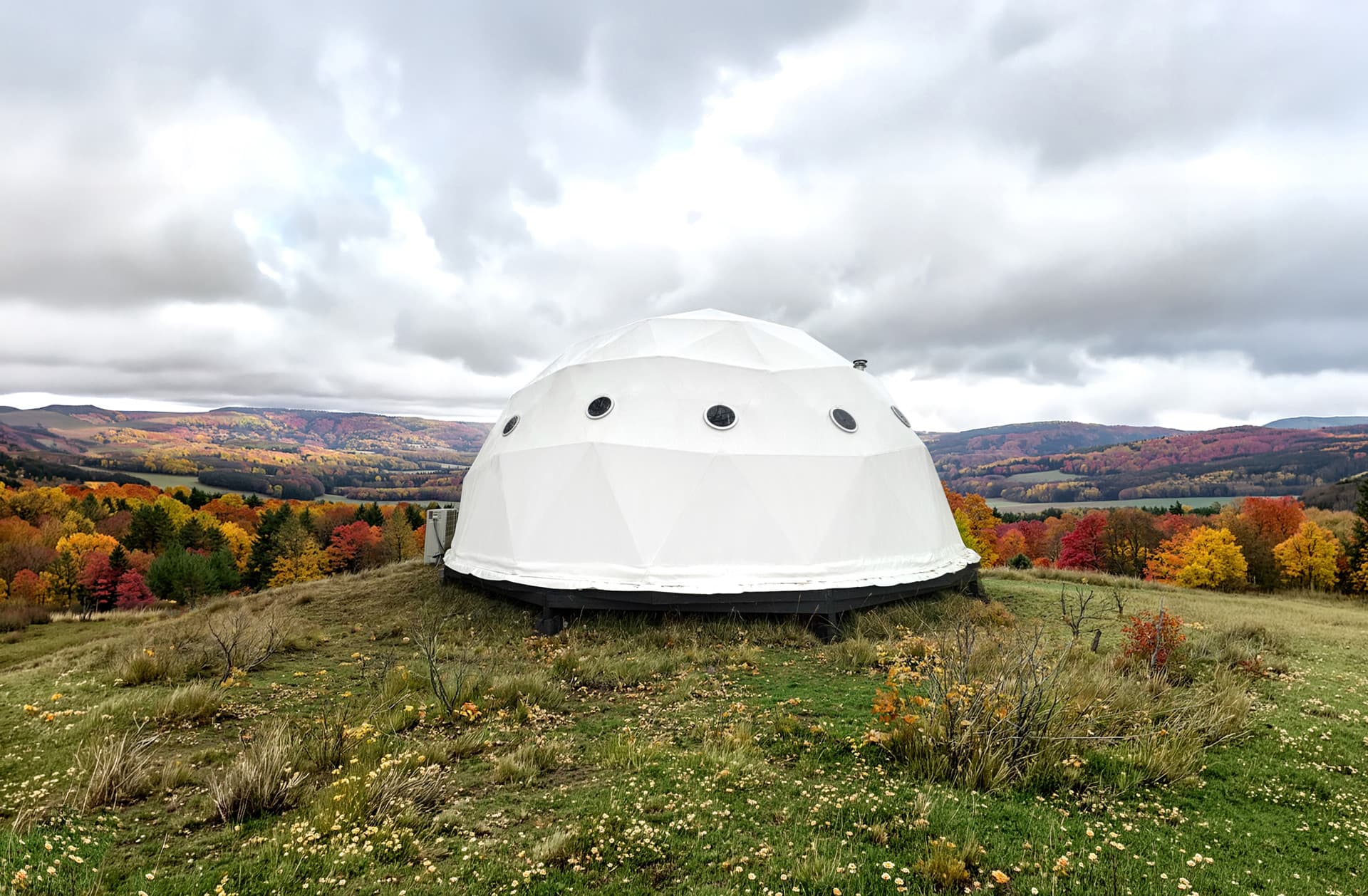

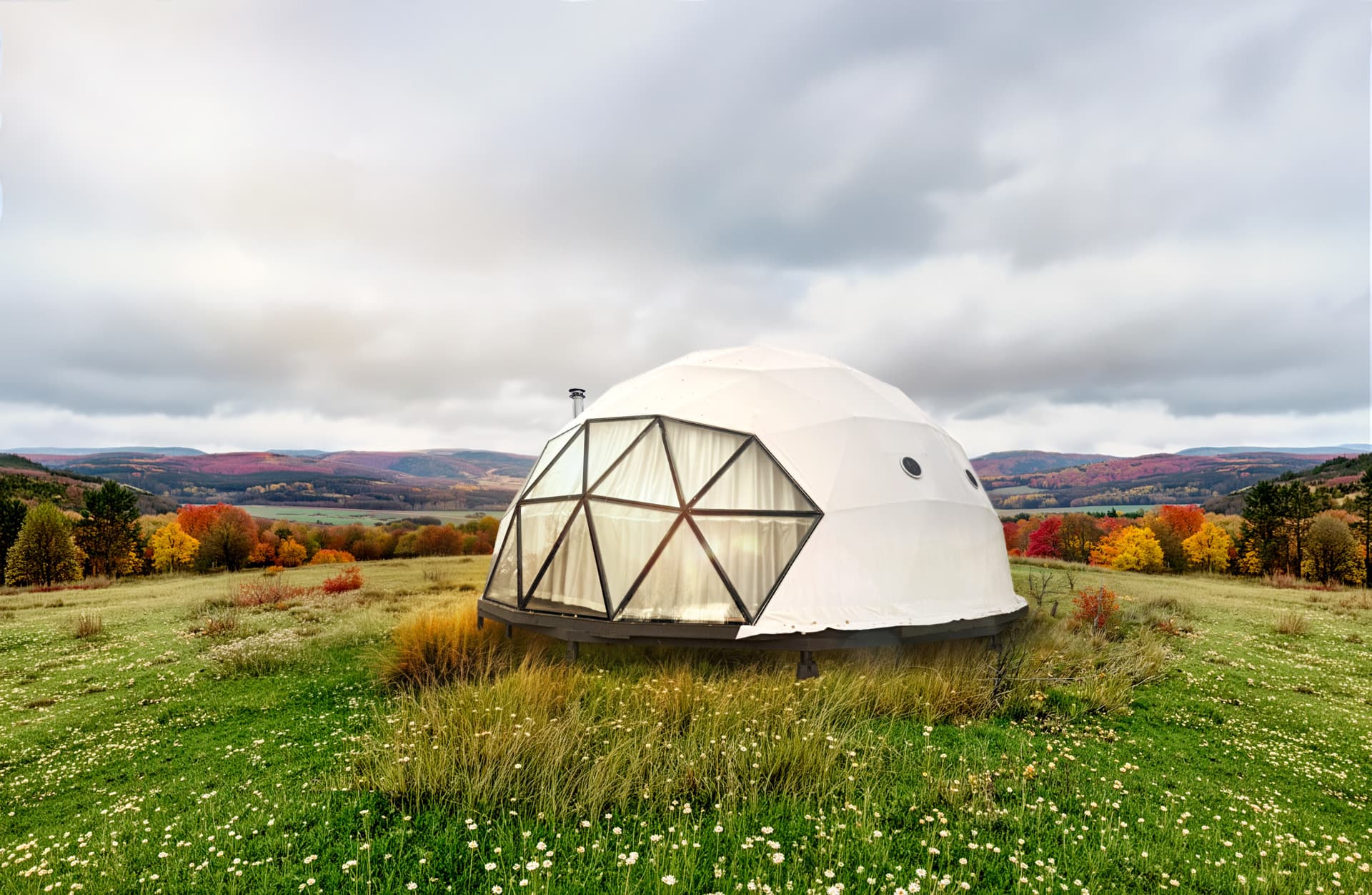

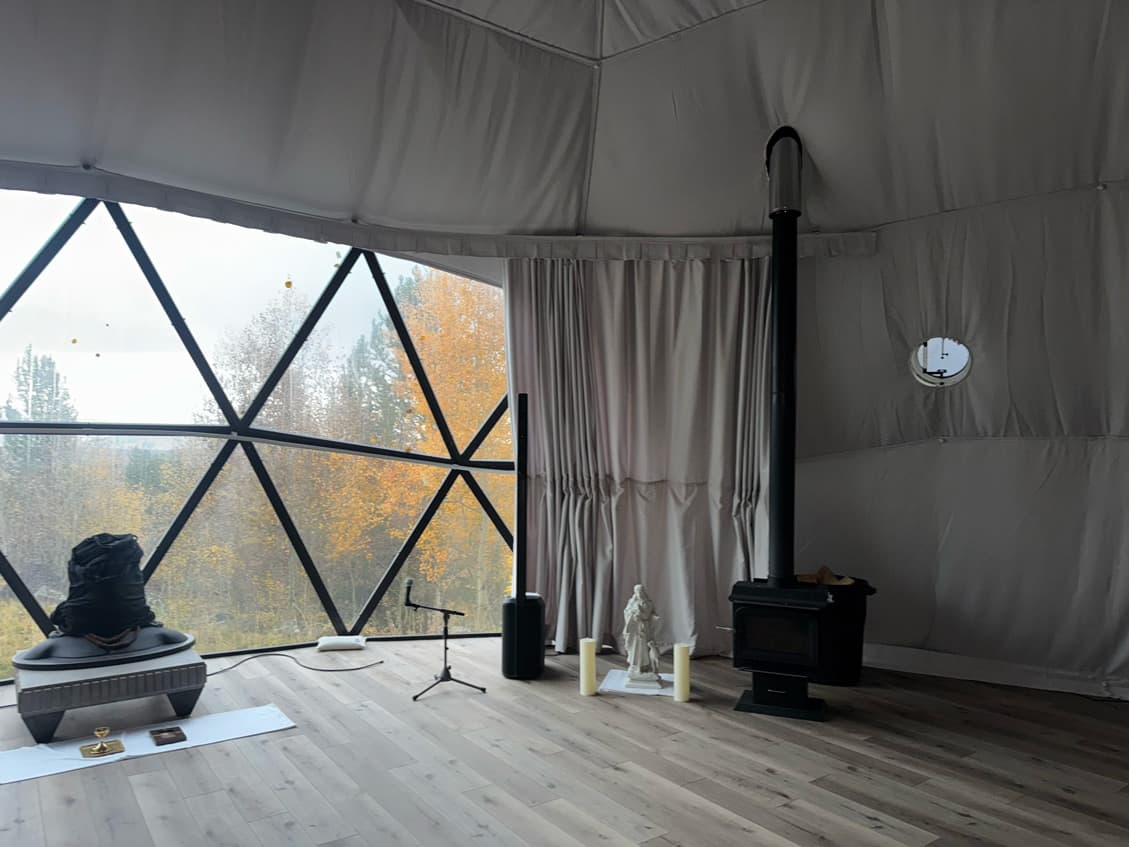

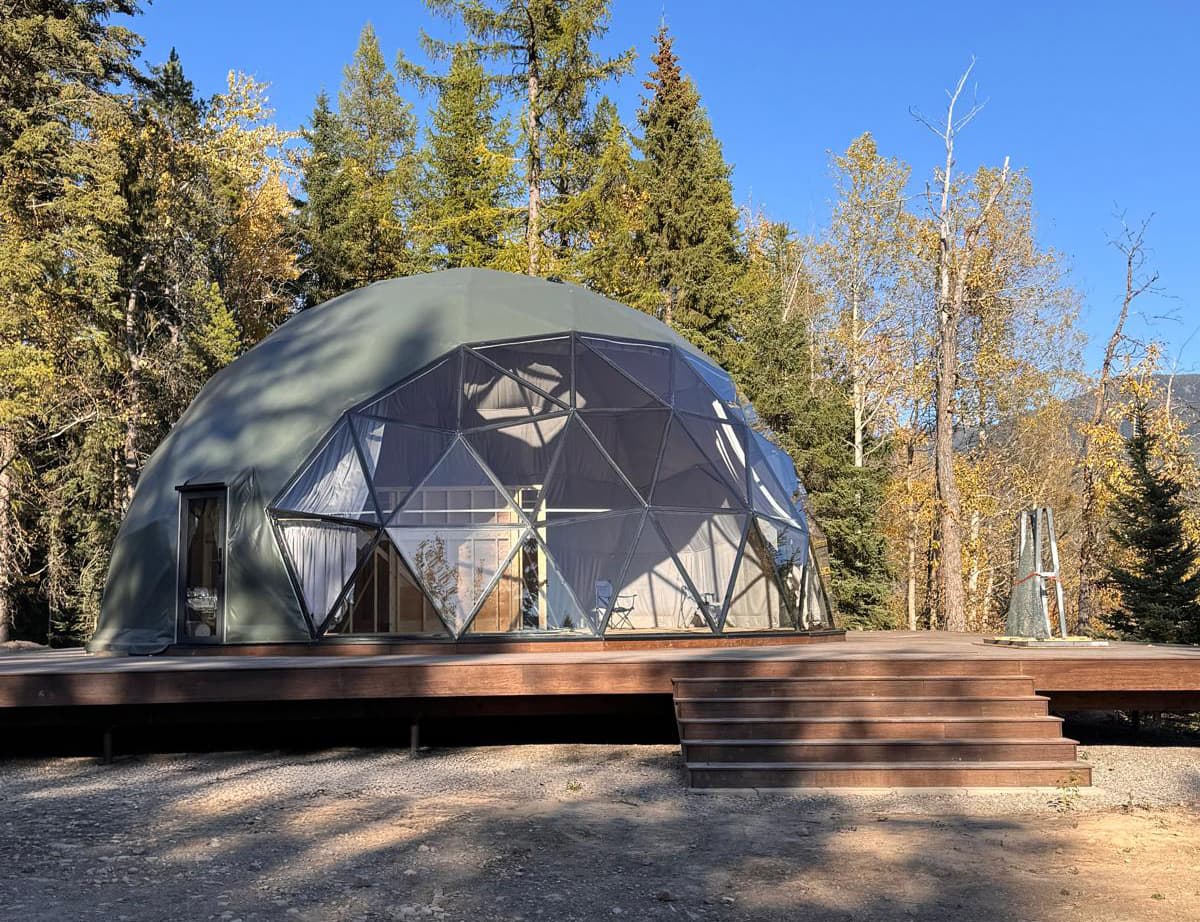

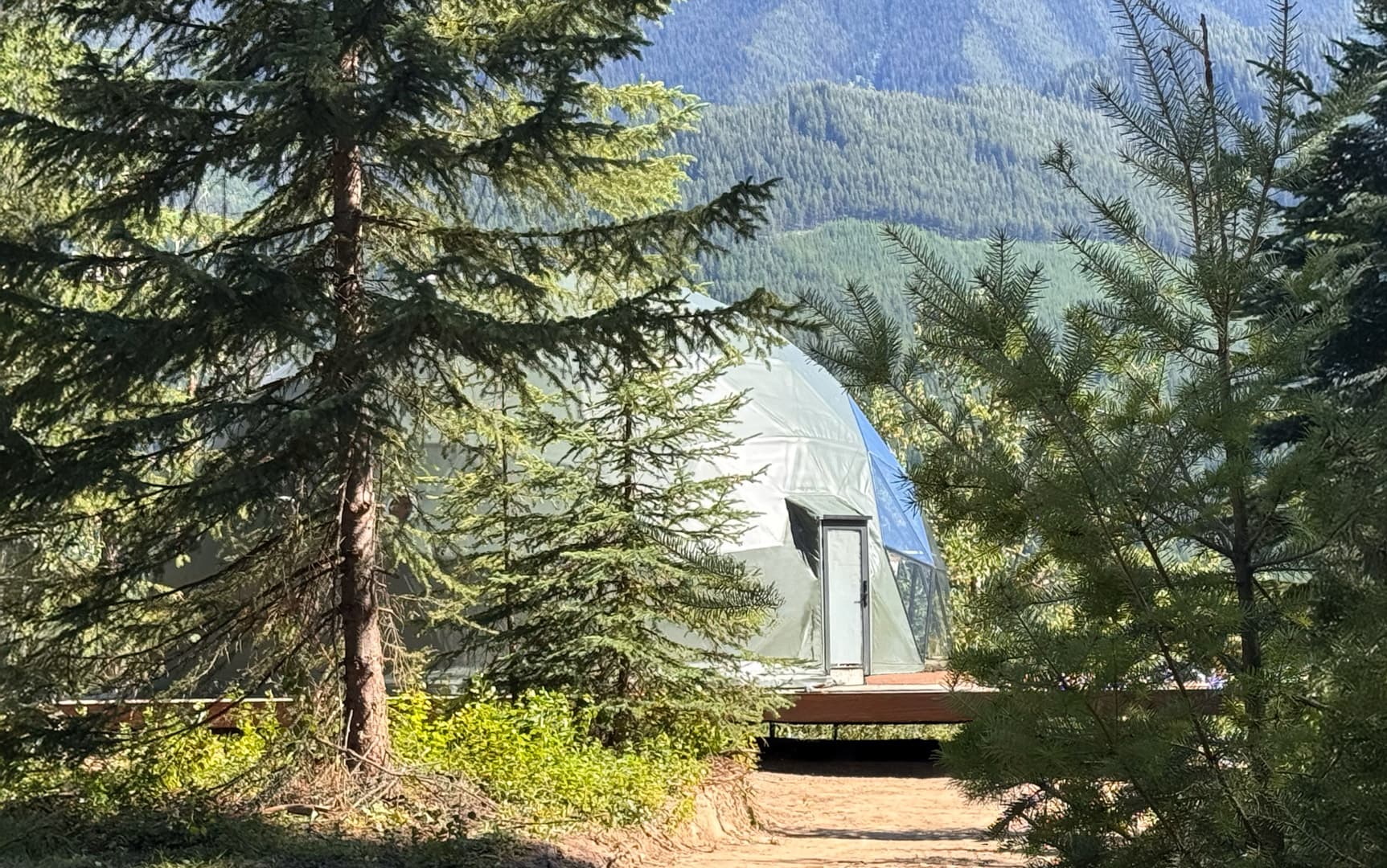

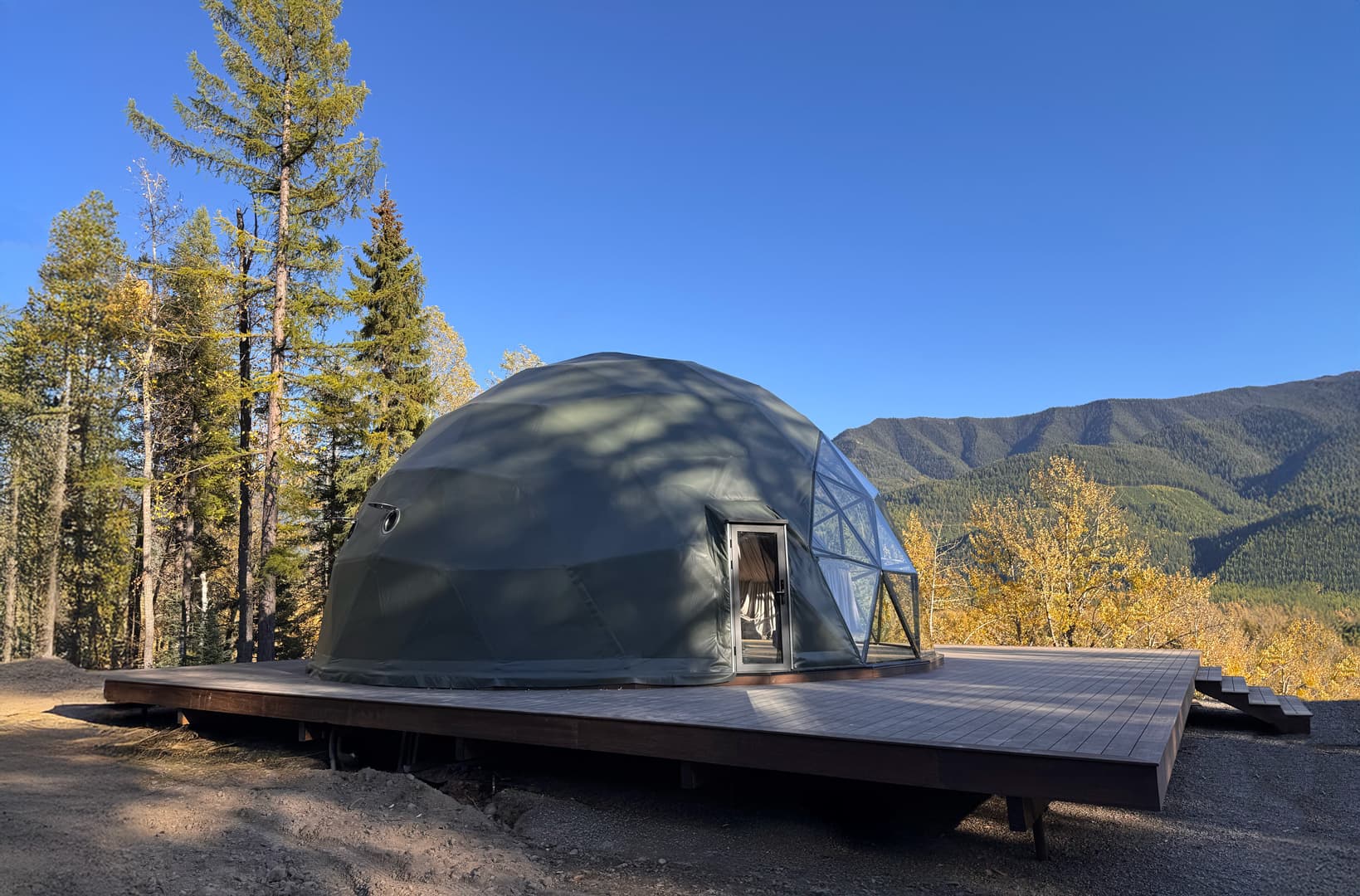

Gallery
